Radio water meters

ERM-30 radio-module water meter

The ERM-30, made in the Czech Republic, is a high-performance water meter certified to MID and compliant with EN 14154. It ensures accurate consumption measurement via real-time data reading using radio technology. The meter features anti-magnetic protection, mechanical and electronic seals, fraud detection, and 12 months of stored data. Readings are performed quickly from outside the property, without entering the building.

See datasheet

The ERM-30 ensures correct allocation of consumption

  • One of the most advanced systems on the market — Made in Czech Republic.
  • High sensitivity to water losses — R100H; starting flow 6 L/h.
  • European metrological certification (MID), compliant with EN 14154 and OIML R49.

Use of real data read via radio waves

The radio water meter is equipped with a specially adapted radio module that allows readings to be taken from outside the building. The user can also check the meter using its analogue display.

Fraud prevention

  • The radio module detects the direction of water flow, and through the infrared interface, it allows memory readings in both forward and reverse directions for the past 12 months. This makes it possible to detect any attempt to tamper with the meter by reversing it.

  • The meter includes anti-magnetic protection, and the radio module is equipped with a sensor that detects magnetic interference attempts.

  • The radio module is sealed with both mechanical and electronic seals. Any mechanical seal breach is detected, recorded, and transmitted via the radio signal.

Other models

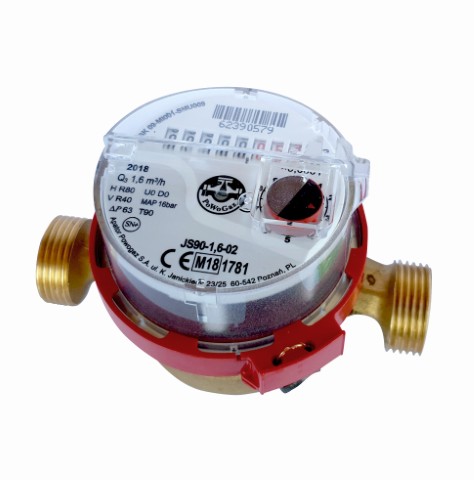

AC L

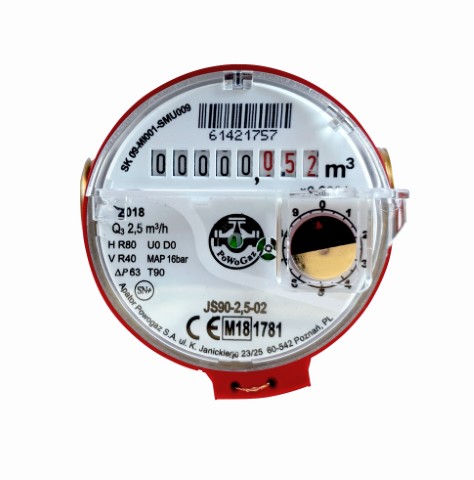

AC s

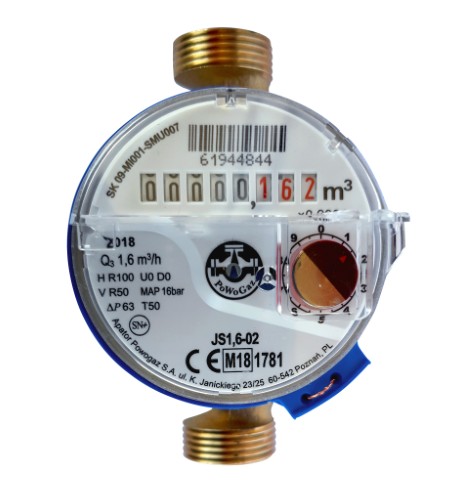

AR L

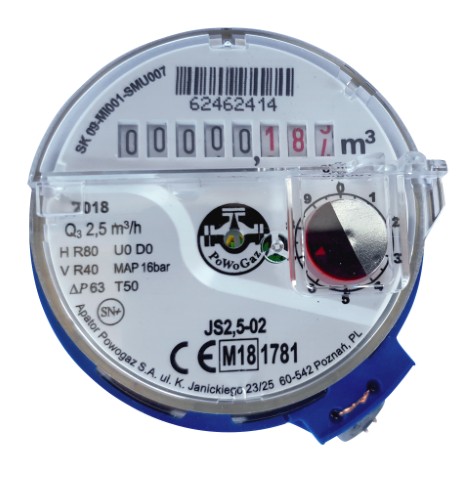

AR s

Documentation

Manufacturer:
Apator Powogaz
Address: ul. Klemensa Janickiego 23/25, 60-542 Poznań
Country: Poland
Tel/Fax: +48 (61) 8 418 100 / +48 (61) 847 01 92
E-mail: secretariat@powogaz.com.pl

We hereby declare, under our sole responsibility, that the following product:
Water meter (batch of water meters) JS 90
is identical to the type described in the certificate number SK 09-MI001-SMU009, 2nd publication.

The product referred to in this declaration complies with the essential requirements of:
Essential requirements: Directive 2004/22/EC

Standards:
PN-EN 14154-1+A2:2011, PN-EN 14154-2+A2:2011, PN-EN 14154-3+A2:2011, OIML R 49-1:2006, OIML R 49-2:2004, OIML R 49-2:2006, OIML R 49-3:2006, STN 25 7821

The product quality system, final product control, and testing of water meters (MI-001) have been approved by the Certification Office 1781 SMU in accordance with Directive 2004/22/EC Annex D.

(Certificate no. SK11-QD-SMU003, version 0, issued on 27.10.2011, valid from 26.10.2014)

Manufacturer:
Apator Powogaz S.A.

Address:
ul. Klemensa Janickiego 23/25, 60-542 Poznań, Poland

Tel/Fax:
+48 (61) 8 418 101 / +48 (61) 847 01 92

E-mail:
sekretariat.powogaz@apator.com

We hereby declare, under our sole responsibility, that the following product:

Water meter (batch of water meters) JS 90
is in conformity with the type described in EU certificate No. SK 09-MI001-SMU009 Version 2.

This declaration refers to compliance with the essential requirements of:
Regulation of the Minister of Economy of 18 December 2006 on the essential requirements for measuring instruments.

Standards:
PN-EN 14154-1+A2:2011, PN-EN 14154-2+A2:2011, PN-EN 14154-3+A2:2011, OIML R 49-1:2006, OIML R 49-2:2004, OIML R 49-2:2006, OIML R 49-3:2006, STN 25 7821

The production quality system, final product control, and testing of water meters (MI-001) have been approved by Notified Body 1781 SMU, in accordance with Directive 2004/22/EC as amended by Directive 2009/137/EC Annex D.

(Certificate No. SK14-QD-SMU003 issued on 27.10.2014, valid until 26.10.2017.)
